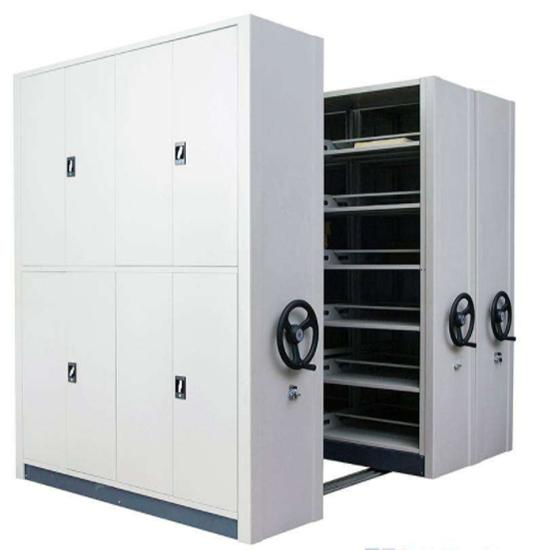

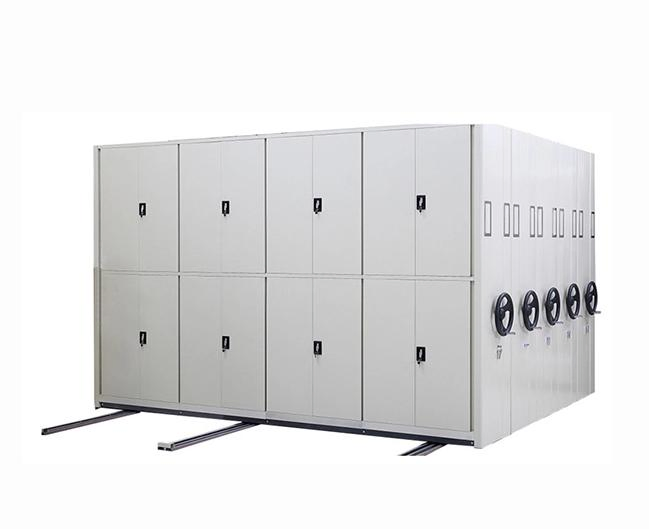

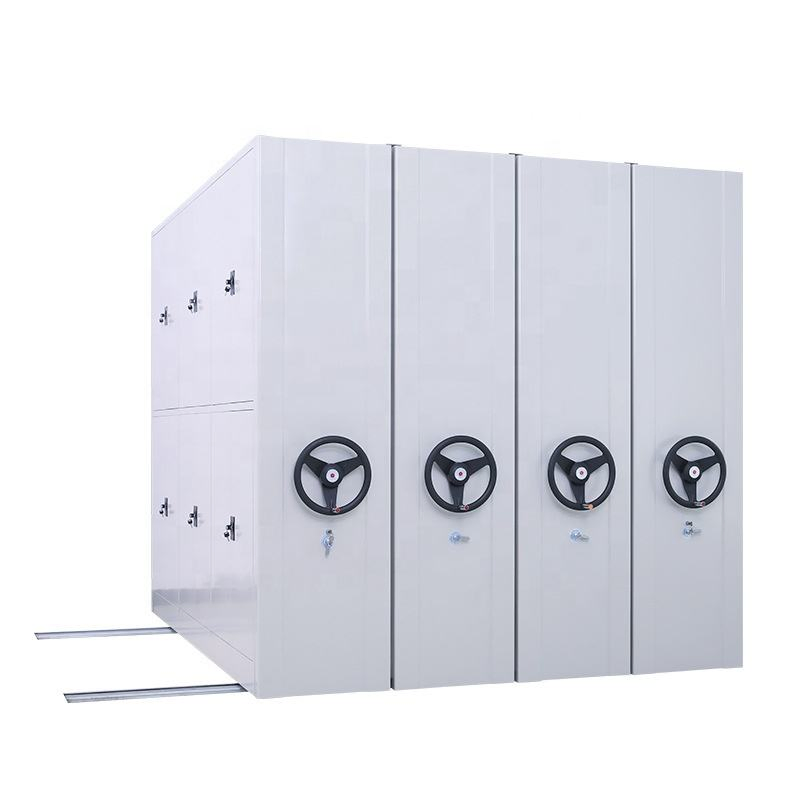

Office Filing Archive Storage Steel Custom Metal Mobile Library Shelving/Shelf

1 / 5

Office Filing Archive Storage Steel Custom Metal Mobile Library Shelving/Shelf

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XM-MB-09L

Size

High

Layer

Side Number

Double Sided

Style

Modern

Door

2 Doors

Folded

Unfolded

Rotary

Color

White

Customized

Condition

New

Transport Package

Carton

Specification

H2300*W900*D560mm

Steel Custom Metal Mobile Library Shelving

Product Description

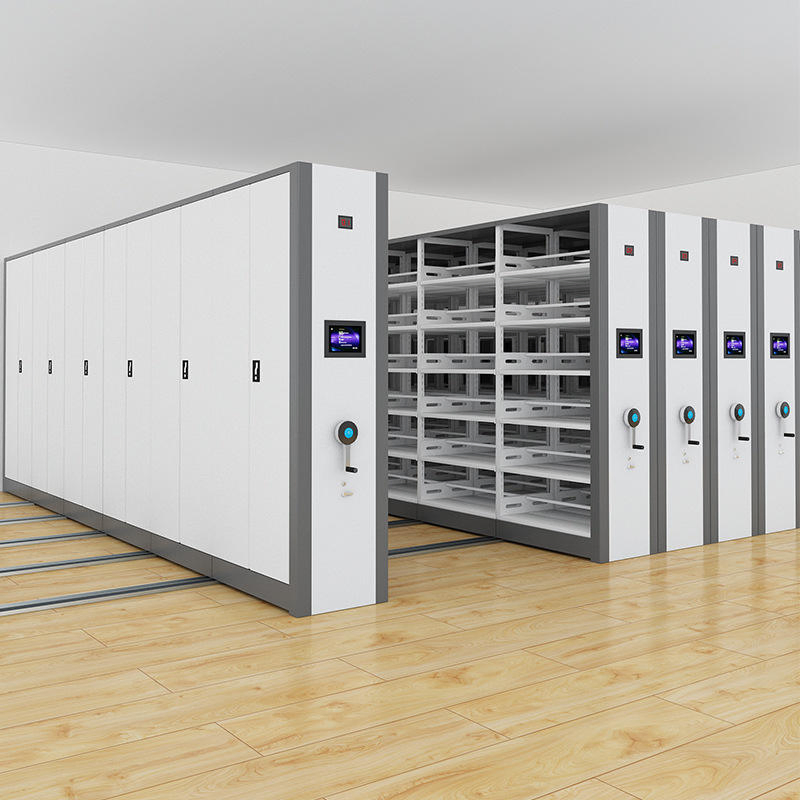

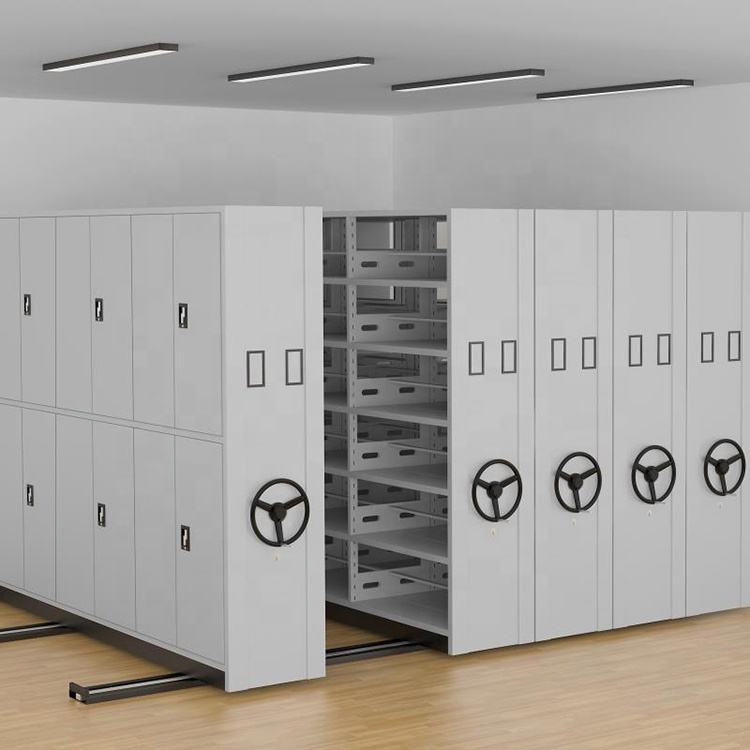

Smart Mobile Shelving System

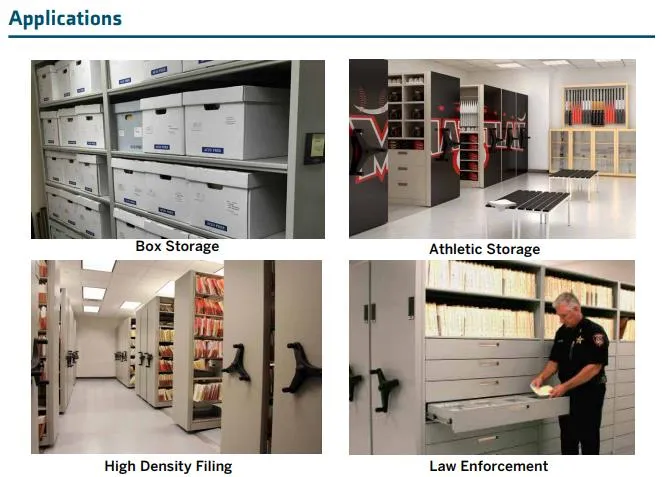

Easy Operated Space Saver Archive Shelving Rack Filing Cabinet designed for high-density storage environments.

Specification	H2300W900D560mm
Material Thickness	0.8mm - 3.0mm
Surface Treatment	Electrostatic powder coating
Packaging	Polyfoam inner lining and multi-layer carton box (wooden option available)
Dimension & Color	Customizable according to specific requirements
Packing Volume	0.34m³/bays
MOQ	3 pcs
Supply Ability	5000 pcs / month
Delivery Time	15-30 days

Technical Specifications

Chassis: Welded chassis with 3mm hot plate bending. Features 204 universal bearing, anti-tilt device, and galvanized pipe connection for stability.

Upright: 1.2mm thick SPCC cold-rolled plate. Hanging plate hole spacing of 50mm allows for vertical height adjustments.

Shelf Board: 1.0mm SPCC cold-rolled plate with triple bending process. Supports uniform load of 80KG per side.

Sealing & Locking: Magnetic seals provide dust and rodent protection. Each column and combination can be securely locked.

Transmission: Integrated mechanism with precision machining sprocket and motorcycle chain for smooth operation.

Handle: Available in free clutch-type folding handle or disc-type swing handle with automatic hanging gear.

Surface Treatment: 13-stage process including phosphating, pickling, and matt electrostatic spray using advanced equipment.

Installation Requirements

For optimal performance, the track installation must meet precise standards: horizontal difference of no more than 1mm per meter, orbit level deviation within 1mm, and track parallelism deviation between 0.1-0.3mm.

Frequently Asked Questions

What is the weight capacity of each shelf?

Each single-sided partition is designed to handle a uniform load of 80KG. It has been tested to ensure no permanent deformation after 24 hours of loading.

Is the shelving system customizable?

Yes, both dimensions and colors can be customized according to the customer's specific office requirements and spatial constraints.

What kind of surface protection does the steel have?

The steel undergoes a thorough 13-stage treatment process, including pickling, phosphating, and electrostatic powder coating to ensure durability and rust resistance.

How does the locking mechanism work?

The system is highly secure; each individual column can be locked independently, and the entire combination can also be locked as a single unit.

Does the system protect against dust and pests?

Yes, the units are equipped with magnetic sealing devices that serve as an effective dust-proof and anti-rat barrier.

What are the requirements for the ground track installation?

The tracks require a very level surface. The horizontal difference should not exceed 1mm per meter to ensure the smooth transmission and longevity of the gear mechanism.
