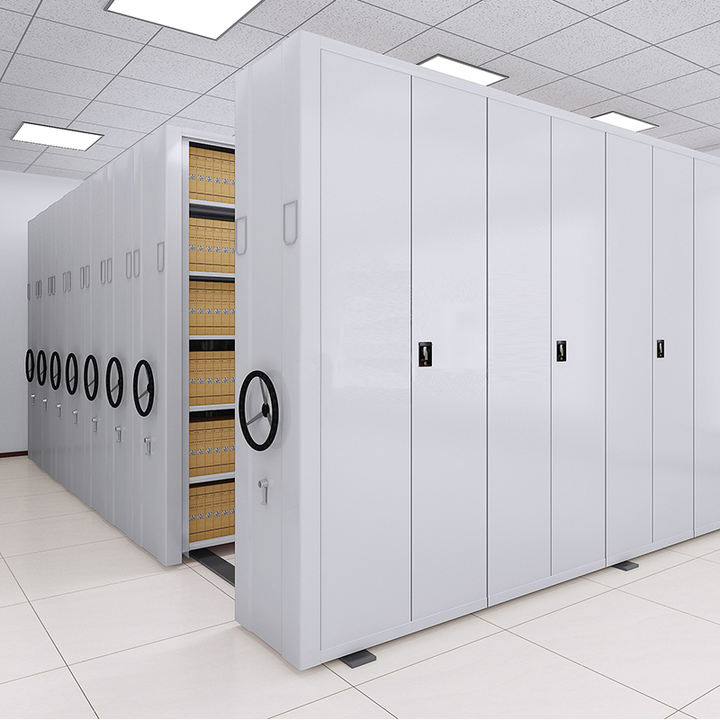

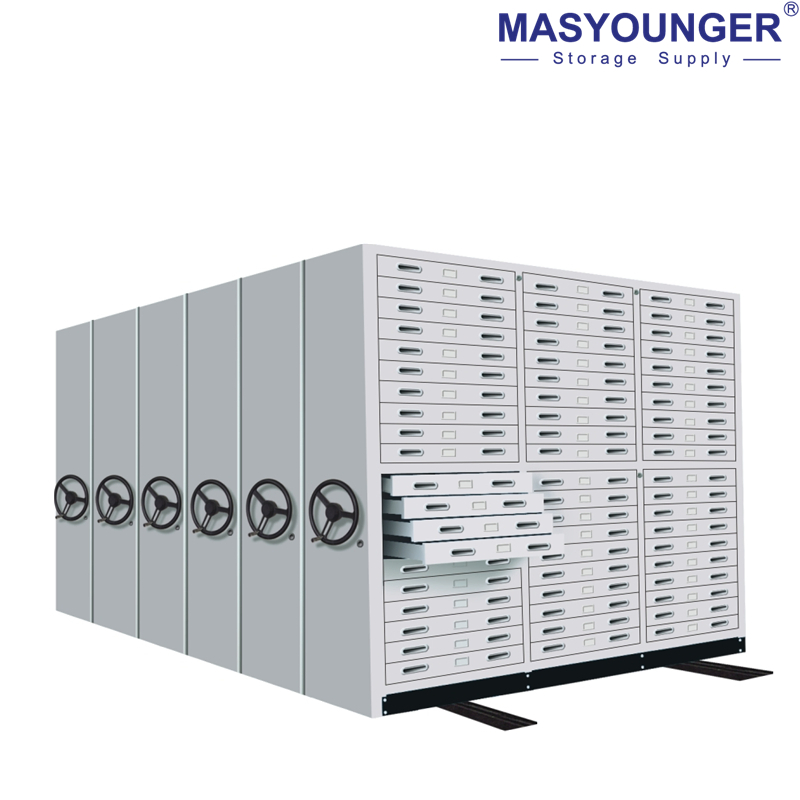

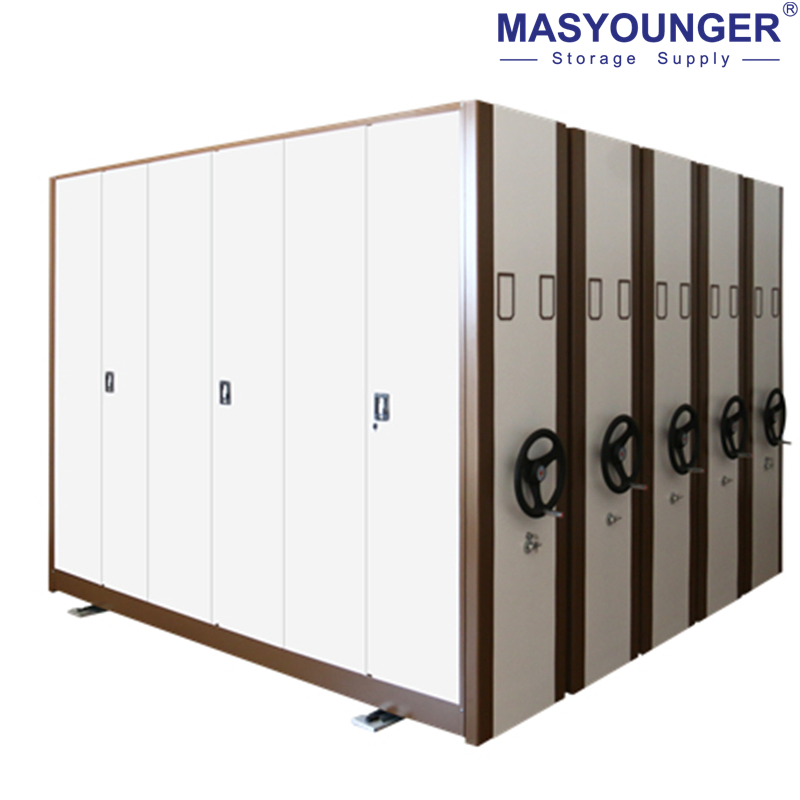

Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
1 / 5
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving
Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving

Favourable Library Furniture Mobile Shelving Steel Filing Cabinet Compact Shelving

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
MY-MS-02
Size
High
Layer
4 Layers
Side Number
Double Sided
Style
Modern
Folded
Unfolded
Rotary
Fixed
Color
White
Customized
Customized
Condition
New
MOQ
10 Sets
Lead Time
25 Days
Specification
H2350*W900*D560
Production Capacity
6000 Pieces / Month
HS Code
940310
📋 Product Description
Mobile Shelving Steel Filing Cabinet
Compact Shelving System
Component Part Name Material Specification/Thickness Standard
Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition (reinforcing rib under partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
Chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
Pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm / T 3.0 GB710
Pathway High quality steel plate 50X185 / T 3.0 GB710
Transmission Handle crank ZG45 Double axis transmission GB1285
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T 307.3-2005
Chain wheel ZG45 Standard GB1135
Chain FR420 Φ8.5, pitch 12.7 GB1244
Idler wheel HT20-40 Cast iron Gb11351
Seal Sealing rubber strip Magnetic fluid sealant - -
Protection Dust shield Cold-roll steel 1.0mm Gb710

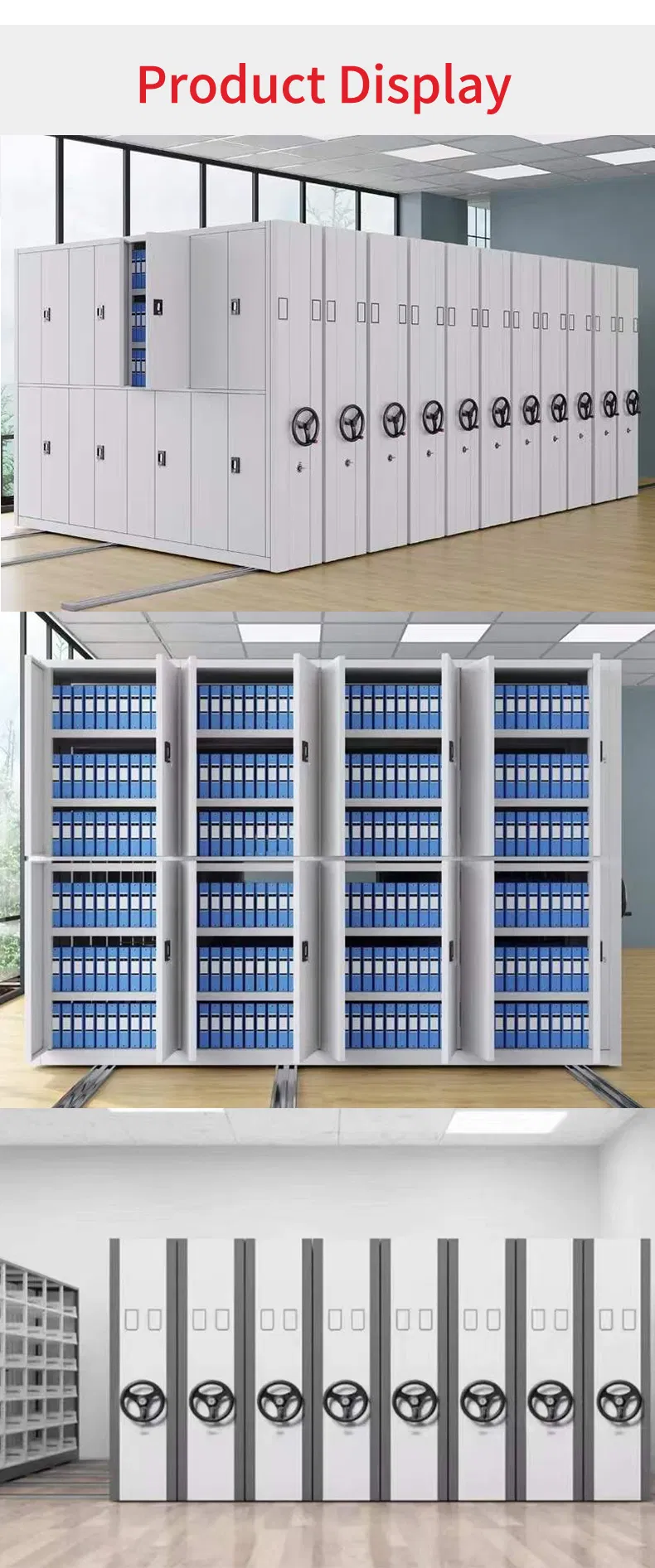

Technical Drawing 1

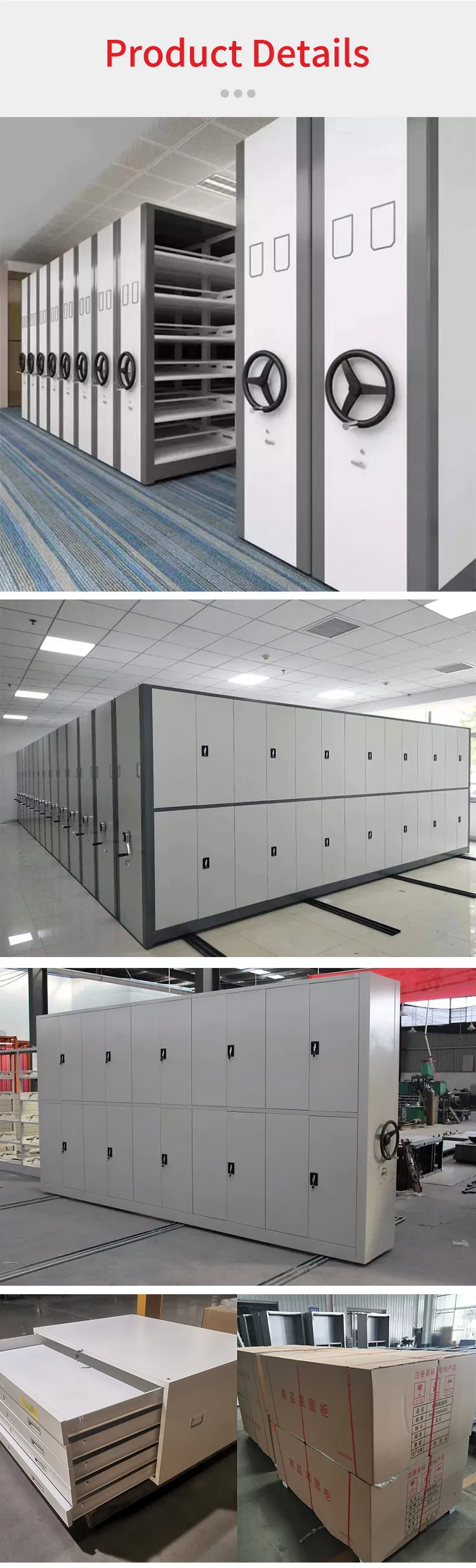

Technical Drawing 2

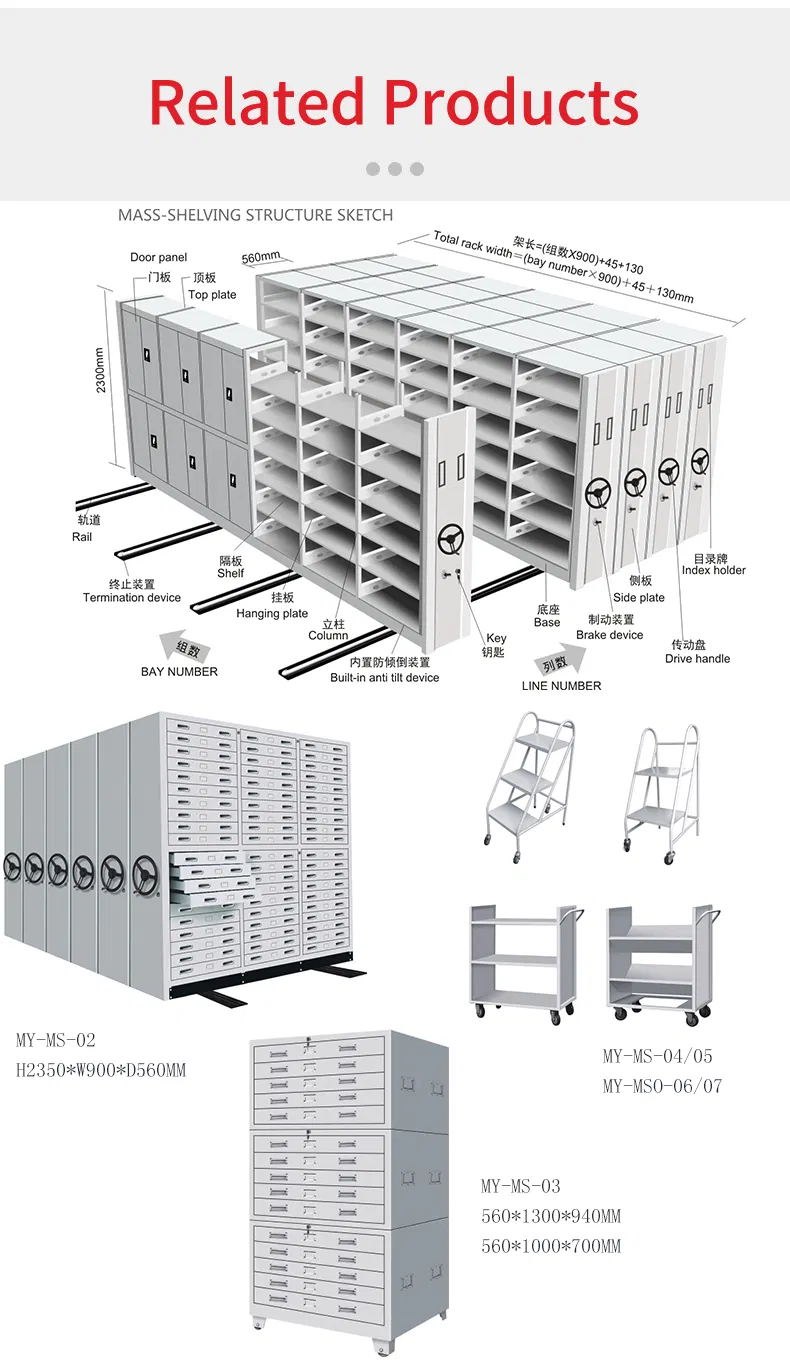

Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
Technical Drawing 7
Technical Drawing 8
Technical Drawing 9
❓ Frequently Asked Questions
What is the standard lead time for this mobile shelving system?
The standard lead time for the MY-MS-02 model is 25 days.
Can the specifications of the shelving be customized?
Yes, this product is fully customized to meet your specific space and storage requirements.
What materials are used in the construction of the chassis?
The chassis is constructed using 3.0mm thick hot rolled steel plates for maximum durability and load capacity.
How many layers does the standard unit have?
The standard high-size model features 4 layers and is double-sided for optimized storage efficiency.
What is the monthly production capacity for this model?
The production facility has a capacity of 6000 pieces per month to ensure timely fulfillment of large orders.
Does the system include dust protection?
Yes, the system is equipped with dust shields made of cold-roll steel and magnetic fluid sealants to protect your files.
